GEN 3.2 AERONAUTICAL CHARTS

1. RESPONSIBLE AUTHORITY

1.1 The CAA provides a wide range of aeronautical charts for use by all types of civil aviation. The AIM produces the charts which are part of the AIP. Charts suitable for pre-flight planning and briefing are available for reference at the AIS office at Muscat International and Salalah International Airports.


1.2 The charts are produced in accordance with the provisions in the following ICAO documents:


Annex4
Aeronautical Charts.
Doc 8697
Aeronautical Chart Manual
Doc 8168
Aircraft Operations, Vol. II (Construction of visual and instrument flight procedures)
1.3 Differences from ICAO Standards Recommended Practices and Procedures are given in GEN 1.7.

2. MAINTENANCE OF CHARTS

2.1 The charts listed in 4.1 are regularly kept up to date or are replaced by AIP amendments. Significant amendments or revisions will be promulgated by AIP SUPPLEMENTS or NOTAM and included in subsequent AIP amendments, if appropriate. Information concerning new aeronautical charts will be notified by AIC.

2.2 Items of information found, after publication, to have been incorrect at the aeronautical information date are corrected immediately by NOTAM if they are of operational significance, attention being directed to that chart affected.

3. PURCHASE ARRANGEMENTS

3.1 The charts listed in 4.1 may be obtained from the:

Civil Aviation Authority
P. O. Box 1
POSTAL CODE 111
MUSCAT
Sultanate of Oman

A limited supply of these charts is also available from the NOF at Muscat Intl Airport.


4. AERONAUTICAL CHARTS SERIES AVAILABLE

4.1 The following are produced and published by the CAA:

a) Aerodrome Obstacle Chart - ICAO Type A

b) Aerodrome Obstacle Chart - ICAO Type B

c) Precision Approach Terrain Chart - ICAO

d) Enroute Charts - ICAO

e) Terminal Area Chart - ICAO

f) Standard Departure Chart Instrument (SID) - ICAO

g) Standard Arrival Chart Instrument (STAR) - ICAO

h) Instrument Approach Chart - ICAO

i) Visual Approach Chart - ICAO

j) Aerodrome Chart - ICAO

k) Aerodrome Ground Movement Chart - ICAO

l) Aircraft Parking/Docking Chart - ICAO

m) World Aeronautical Chart - ICAO 1:1 000 000

n) ATC Surveillance Minimum Altitude Chart - ICAO

Note: Not all these charts are produces for each aerodrome. Charts are produced when required in accordance with Annex 4 Standards and Recommended Practices.

5. GENERAL DESCRIPTION OF EACH SERIES

4.2 General description of each series:

5.1 a) Aerodrome Obstacle Chart - ICAO Type A

These are available for ADs designated for use by international commercial air transport. The scales used are 1 : 20 000 (horizontal) and 1 : 2 000 (vertical). The charts, showing a plan and profile of each RWY (including any associated SWY and CWY), take-off flight path area, any significant obstructions and relevant declared distances, are included in AD 2.

5.2 b) Aerodrome Obstacle Chart - ICAO Type B

These charts at scale of 1:20 000 show the topography and the obstacles in the vicinity of the airport. They are intended to be used by and to assist flight crews in determination of the minimum safe altitude/height during departure and arrival phase including those for circling procedures the pre-determination of procedures for use in the event of an emergency during take-off or landing and are included in AD 2.

5.3 c) Precision Approach Terrain Chart - ICAO

These charts provide detailed terrain profile information within a defined portion of the final approach so as to enable aircraft operating agencies to assess the effect of the terrain on decision height determination by the use of radio altimeters. Those published are included in AD 2.

5.4 d) Enroute Charts - ICAO

This chart is produced for the entire Oman FIR. The aeronautical data include all aerodrome, prohibited, restricted and danger areas and the air traffic service systems in detail. The chart provides the flight crew with information that will facilitate navigation along ATS routes in compliance with air traffic services procedures.

5.5 e) Terminal Area Chart - ICAO

These are available for Muscat TMA and depict arrival, departure and transit routes and holding patterns. They are designed to facilitate transition between Radio Navigation Charts and Instrument Approach Charts and are included in AD 2.

5.6 f) Standard Departure Chart Instrument (SID) - ICAO

These charts are produced whenever a standard departure route - instrument has been established and cannot be shown with sufficient clarity on the Area Chart - ICAO.

The aeronautical data shown include the aerodrome of departure, aerodrome(s) which affect the designated standard departure route - instrument, prohibited, restricted and danger areas and the air traffic services system. This chart provides the flight crew with information that will be enable them to comply with the designated standard departure route - instrument from the take-off phase to the enroute phase. Those published are included in AD 2.

5.7 g) Standard Arrival Chart Instrument (STAR) - ICAO

These charts are produced whenever a standard arrival route - instrument has been established and cannot be shown with sufficient clarity on the Area Chart - ICAO.

The aeronautical data shown include the aerodrome of landing, aerodrome(s) which affect the designated standard arrival route - instrument, prohibited, restricted and danger areas and the air traffic services system. This chart provides flight crew with information that will enable them to comply with the designated standard arrival route - instrument from the enroute phase to the approach phase. Those published are included in AD 2.

5.8 h) Instrument Approach Chart - ICAO

These are available for ADs where instrument approach procedures have been established and approved by the Flight Operations Section of the CAA. A separate chart is published for each procedure showing plan and profile views of holding, approach and missed approach, radio facilities and relevant topographical information. Those published are included in AD 2.

5.9 i) Visual Approach Chart - ICAO

These are designed to provide pilots with a graphic presentation of approaches to ADs by visual reference, whether or not previous reference has been made to either a Radio or Visual Navigation Chart. Those published are included in AD 2.

5.10 j) Aerodrome Chart - ICAO

These are available for ADs designated for use by international commercial air transport and are designed to facilitate ground movement between RWYs and aprons. They show a plan view of the movement area and depict visual aids, radio installations, terminal buildings, ARP, RWY marking, lighting and, at an enlarged scale TWY and apron marking.

5.11 k) Aerodrome Ground Movement Chart - ICAO

This supplementary chart shall provide flight crews with detailed information to facilitate the ground movement of aircraft to and from the aircraft stands and the parking/ docking of aircraft.

5.12 l) Aircraft Parking/Docking Chart - ICAO

This chart is produced for those aerodromes where, due to complexity of the terminal facilities, the information cannot be shown with sufficient clarity on the Aerodrome/ Heliport Chart - ICAO.

This supplementary chart provides flight crews with detailed information to facilitate the ground movement of aircraft between the taxiways and the aircraft stands and the parking/docking of aircraft. Those published are included in AD 2.

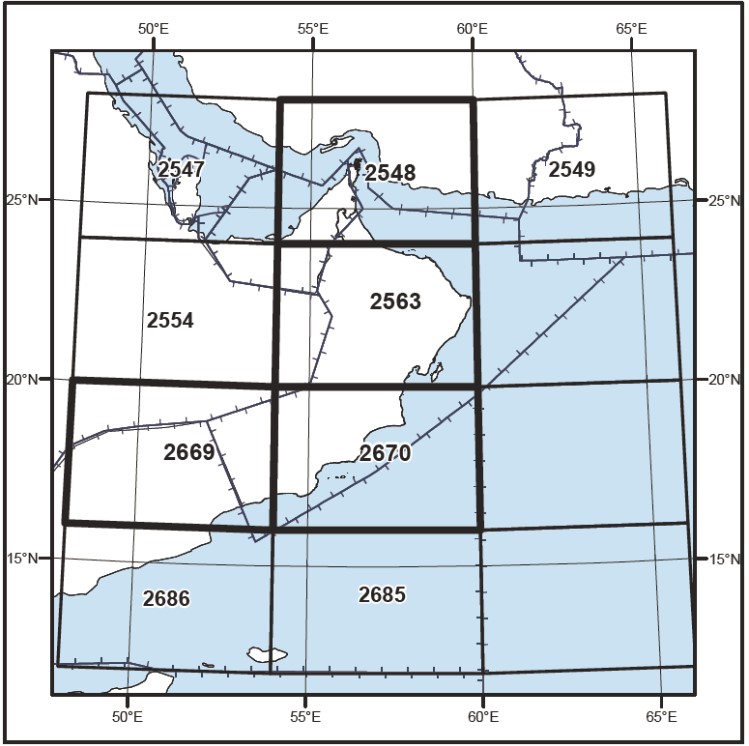

5.13 m) World Aeronautical Chart - ICAO 1 : 1 000 000

These are published by Oman Authorities and available from the Civil Aviation Authority listed in 3.1. They constitute the Oman territory. Designed for pre-flight planning and pilotage, they are constructed on the Lambert Conformal Conic Projection and depict the main planimetric features and relief data and basic aeronautical information.

5.14 n) ATC Surveillance Minimum Altitude Chart - ICAO

This chart is supplementary to the Area Chart and provides information which will enable flight crews to monitor and cross-check altitudes assigned while under radar control.

6 5. LIST OF AERONAUTICAL CHARTS AVAILABLE

TITLE OF SERIES SCALE CHART NAME AND/OR NUMBER PRICE PER SHEET RO. DATE
Aerodrome Obstacle Chart-ICAO Type A (AOC)
1:20 000
DUQM/Duqm RWY 04/22
AD 2.OODQ -17

6 OCT 22
1:20 000
FAHUD/Fahud RWY 13/31
AD 2.OOFD - 15

21 APR 22
1:15 000
JA’ALUNI/Ja’aluni RWY 03/21
AD 2.OOJA - 13

29 MAY 14
1:20 000
MARMUL/Marmul RWY 14/32
AD 2.OOMX - 19

23 APR 20
1:20 000
MUKHAIZNA/Mukhaizna RWY 14/32
AD 2.OOMK -15

5 OCT 23
1:20 000
MUSCAT/Muscat Intl RWY 08L/26R
AD 2.OOMS - 39

13 JUN 24
1:20 000
MUSCAT/Muscat Intl RWY 08R/26L
AD 2.OOMS - 41

13 JUN 24
1:15 000
QARN ALAM/Qarn Alam RWY 12/30
AD 2.OOGB - 15

5 OCT 23
1:20 000
SALALAH/Salalah RWY 07/25
AD 2.OOSA -25

23 APR 20
1:20 000
SUHAR/Suhar RWY 15/33
AD 2.OOSH - 21

7 OCT 21
Aerodrome Obstacle Chart-ICAO Type B (AOC)
1:20 000
DUQM/Duqm
AD 2.OODQ - 19

23 APR 20
1:20 000
FAHUD/Fahud
AD 2.OOFD - 17

21 APR 22
1:20 000
JA’ALUNI/Ja’aluni
AD 2.OOJA - 15

29 MAY 14
1:20 000
MARMUL/Marmul
AD 2.OOMX - 21

23 APR 20
1:20 000
MUKHAIZNA/Mukhaizna
AD 2.OOMK - 17

5 OCT 23
1:20 000
MUSCAT/Muscat Intl
AD 2.OOMS - 43

13 JUN 24
1:20 000
QARN ALAM/Qarn Alam
AD 2.OOGB - 17

5 OCT 23
1:20 000
SALALAH/Salalah
AD 2.OOSA - 27

23 APR 20
1:20 000
SUHAR/Suhar
AD 2.OOSH - 23

7 OCT 21
Precision Approach Terrain Chart-ICAO (PATC)
1:2 500
MUSCAT/Muscat Intl RWY 08L
AD 2.OOMS - 45

5 OCT 23
1:2 500
MUSCAT/Muscat Intl RWY 26R
AD 2.OOMS - 47

5 OCT 23
1:2 500
SALALAH/Salalah RWY 07
AD 2.OOSA - 29

9 NOV 17
1:2 500
SALALAH/Salalah RWY 25
AD 2.OOSA - 31

9 NOV 17
Terminal Area Chart-ICAO (TAC)
MUSCAT/Muscat Intl
1:750 000
TMA Chart Muscat
AD 2.OOMS - 49

13 JUN 24
1:1 500 000
DEP/ARR Standard RNAV Routes
AD 2.OOMS - 51

>5 SEP 24
SALALAH/Salalah
1:750 000
ATC Surveillance Minimum Altitude
Chart
AD 2.OOSA - 33

25 APR 19
Standard Departure Chart Instrument-ICAO (SID)
DUQM/Duqm
1:750 000
RNAV (GNSS) RWY 04
AD 2.OODQ - 21

23 APR 20
1:750 000
RNAV (GNSS) RWY 22
AD 2.OODQ - 23

23 APR 20
FAHUD/Fahud
1:500 000
RNAV (GNSS) RWY 13
AD 2 OOFD - 19

6 OCT 22
1:1 000 000
RNAV (GNSS) RWY 31
AD 2.OOFD - 21

6 OCT 22
MARMUL/Marmul
1:500 000
RNAV (GNSS) RWY 14
AD 2.OOMX - 23

6 OCT 22
1:500 000
RNAV (GNSS) RWY 32
AD 2.OOMX - 25

6 OCT 22
MUKHAIZNA/Mukhaizna
1:500 000
RNAV (GNSS) RWY 14
AD 2.OOMK - 19

5 OCT 23
1:500 000
RNAV (GNSS) RWY 32
AD 2.OOMK - 21

5 OCT 23
MUSCAT/Muscat Intl
1:750 000
RNAV (GNSS) RWY 08L
AD 2.OOMS - 53

13 JUN 24
1:750 000
RWY 08L
AD 2.OOMS - 57

13 JUN 24
1:750 000
RNAV (GNSS) RWY 26R
AD 2.OOMS - 59

13 JUN 24
1:750 000
RWY 26R
AD 2.OOMS - 65

13 JUN 24

QARN ALAM/Qarn Alam
1:600 000
RNAV (GNSS) RWY 12
AD 2.OOGB - 19

6 OCT 22
1:600 000
RNAV (GNSS) RWY 30
AD 2.OOGB - 21

6 OCT 22
SALALAH/Salalah
1:500 000
RNAV (GNSS) RWY 07
AD 2.OOSA - 35

25 APR 19
1:500 000
RWY 07
AD 2.OOSA - 37

25 APR 19
1:500 000
RNAV (GNSS) RWY 25
AD 2.OOSA - 39

25 APR 19
1:500 000
RWY 25
AD 2.OOSA - 41

25 APR 19
SUHAR/Suhar
1:600 000
RNAV (GNSS) RWY 15
AD 2.OOSH - 25

6 OCT 22
1:600 000
RNAV (GNSS) RWY 33
AD 2.OOSH - 27

6 OCT 22
Standard Arrival Chart Instrument-ICAO (STAR)
DUQM/Duqm
1:750 000
RNAV (GNSS) RWY 04
AD 2.OODQ - 25

23 APR 20
1:750 000
RNAV (GNSS) RWY 22
AD 2.OODQ - 27

23 APR 20
FAHUD/Fahud
1:800 000
RNAV (GNSS) RWY 13
AD 2.OOFD - 23

6 OCT 22
1:800 000
RNAV (GNSS) RWY 31
AD 2.OOFD - 25

6 OCT 22
MARMUL/Marmul
1:500 000
RNAV (GNSS) RWY 14
AD 2.OOMX - 27

6 OCT 22
1:500 000
RNAV (GNSS) RWY 32
AD 2.OOMX - 29

6 OCT 22
MUKHAIZNA/Mukhaizna
1:750 000
RNAV (GNSS) RWY 14
AD 2.OOMK - 23

5 OCT 23
1:750 000
RNAV (GNSS) RWY 32
AD 2.OOMK - 25

5 OCT 23
MUSCAT/Muscat Intl
1:750 000
RNAV (GNSS) RWY 08L
AD 2.OOMS - 67

13 JUN 24
1:750 000
RWY 08L
AD 2.OOMS - 71

13 JUN 24
1:400 000
RWY 08L (TRANSITION)
AD 2.OOMS - 73

13 JUN 24
1:750 000
RNAV (GNSS) RWY 26R
AD 2.OOMS - 77

13 JUN 24
1:750 000
RWY 26R
AD 2.OOMS - 81

13 JUN 24
1:400 000
RWY 26R (TRANSITION)
AD 2.OOMS - 83

13 JUN 24
Standard Arrival Chart Instrument-ICAO (STAR)
QARN ALAM/Qarn Alam
1:500 000
RNAV (GNSS) RWY 12
AD 2.OOGB - 23

6 OCT 22
1:500 000
RNAV (GNSS) RWY 30
AD 2.OOGB - 25

6 OCT 22
SALALAH/Salalah
1:750 000
RNAV (GNSS) RWY 07
AD 2.OOSA - 43

25 APR 19
1:750 000
RWY 07
AD 2.OOSA - 47

25 APR 19
1:750 000
RNAV (GNSS) RWY 25
AD 2.OOSA - 49

25 APR 19
1:750 000
RWY 25
AD 2.OOSA - 53

25 APR 19
SUHAR/Suhar
1:600 000
RNAV (GNSS) RWY 15
AD 2.OOSH - 29

6 OCT 22
1:600 000
RNAV (GNSS) RWY 33
AD 2.OOSH - 31

6 OCT 22
Instrument Approach Chart-ICAO (IAC)
DUQM/Duqm
1:400 000
RNP RWY 04
AD 2.OODQ - 29

23 APR 20
1:400 000
RNP RWY 22
AD 2.OODQ - 31

23 APR 20
FAHUD/Fahud
1:300 000
RNP RWY 13
AD 2.OOFD - 27

21 APR 22
1:300 000
RNP RWY 31
AD 2.OOFD - 29

21 APR 22
MARMUL/Marmul
1:250 000
RNP RWY 14
AD 2.OOMX - 31

6 OCT 22
1:300 000
RNP RWY 32
AD 2.OOMX - 33

6 OCT 22
MUKHAIZNA/Mukhaizna
1:400 000
RNP RWY 14
AD 2.OOMK - 27

5 OCT 23
1:400 000
RNP RWY 32
AD 2.OOMK - 29

5 OCT 23
MUSCAT/Muscat Intl
1:500 000
ILS RWY 08L
AD 2.OOMS - 87

13 JUN 24
1:600 000
ILS RWY 26R
AD 2.OOMS - 89

13 JUN 24
1:500 000
LOC RWY 08L
AD 2.OOMS - 91

13 JUN 24
1:600 000
LOC RWY 26R
AD 2.OOMS - 93

13 JUN 24
1:500 000
RNP RWY 08L
AD 2.OOMS - 95

13 JUN 24
1:600 000
RNP RWY 26R
AD 2.OOMS - 97

13 JUN 24
1:400 000
VOR RWY 08L
AD 2.OOMS - 99

13 JUN 24
1:400 000
VOR RWY 26R
AD 2.OOMS - 101

13 JUN 24
QARN ALAM/Qarn Alam
1:300 000
RNP RWY 12
AD 2.OOGB - 27

11 OCT 18
1:300 000
RNP RWY 30
AD 2.OOGB - 29

11 OCT 18
SALALAH/Salalah
1:500 000
ILS RWY 07
AD 2.OOSA - 55

22 APR 21
1:700 000
ILS RWY 25
AD 2.OOSA - 57

22 APR 21
1:500 000
LOC RWY 07
AD 2.OOSA - 59

23 APR 20
1:700 000
LOC RWY 25
AD 2.OOSA - 61

23 APR 20
1:500 000
RNP RWY 07
AD 2.OOSA - 63

25 APR 19
1:700 000
RNP RWY 25
AD 2.OOSA - 65

25 APR 19
1:500 000
VOR RWY 07
AD 2.OOSA - 67

25 APR 19
1:700 000
VOR RWY 25
AD 2.OOSA - 69

25 APR 19
SUHAR/Suhar
1:400 000
RNP RWY 15
AD 2.OOSH - 33

7 OCT 21
1:400 000
RNP RWY 33
AD 2.OOSH - 35

7 OCT 21
Visual Approach Chart-ICAO (VAC)
1:300 000
VAC Ja’aluni
AD 2.OOJA - 17

29 MAY 14
1:250 000
VFR Routes Muscat
AD 2.OOMS - 103

13 JUN 24
1:250 000
VAC Salalah
AD 2.OOSA - 71

25 APR 19
Aerodrome Chart-ICAO (ADC)
1:20 000

DUQM/Duqm
AD 2.OODQ - 13

6 OCT 22
1:20 000
FAHUD/Fahud
AD 2.OOFD - 11

21 APR 22
1:15 000
JA’ALUNI/Ja’aluni
AD 2.OOJA - 9

29 MAY 14
1:12 000
MARMUL/Marmul
AD 2.OOMX - 15

6 OCT 22
1:15 000
MUKHAIZNA/Mukhaizna
AD 2.OOMK - 11

5 OCT 23
1:20 000
MUSCAT/Muscat Intl
AD 2.OOMS - 27

13 JUN 24
1:20 000
QARN ALAM/Qarn Alam
AD 2.OOGB - 11

13 JUN 24
1:20 000
SALALAH/Salalah
AD 2.OOSA - 19

21 APR 22
1:25 000
SUHAR/Suhar
AD 2.OOSH - 15

5 OCT 23
Aircraft Parking/Docking Chart-ICAO (PDC)
1:3 500
DUQM/Duqm
AD 2.OODQ - 15

6 OCT 22
1:2 400
FAHUD/Fahud
AD 2.OOFD - 13

21 APR 22
1:4 000
JA’ALUNI/Ja’aluni
AD 2.OOJA - 11

29 MAY 14
1:2 400
MARMUL/Marmul
AD 2.OOMX - 17

6 OCT 22
1:2 500
MUKHAIZNA/Mukhaizna
AD 2.OOMK - 13

5 OCT 23
1:8 000
MUSCAT/Muscat Intl (South Civil & General Aviation Aprons)
AD 2.OOMS - 29

13 JUN 24
1:7 000
MUSCAT/Muscat Intl (North Civil Apron)
AD 2.OOMS - 33

13 JUN 24
1:5 000
MUSCAT/Muscat Intl (Cargo Apron)
AD 2.OOMS - 37

13 JUN 24
1:2 400
QARN ALAM/Qarn Alam
AD 2.OOGB - 13

23 APR 20
1:5 000
SALALAH/Salalah (N-Aprons)
AD 2.OOSA - 21

21 APR 22
1:4 000
SALALAH/Salalah (S-Apron)
AD 2.OOSA - 23

23 APR 20
1:3 500
SUHAR/Suhar
AD 2.OOSH - 17

13 JUN 24
1:3 500
SUHAR/Suhar (GA Apron)
AD 2.OOSH - 19

13 JUN 24
World Aeronautical Chart-ICAO (WAC)
1:1 000 000
WORLD AERONAUTICAL CHART
2548-2563-2669-2670
70 OMR
5 OCT 23
A list of the available aeronautical charts can be found in the table below,
ENR 6 and appropriate AD 2.24 sections.

TITLE OF SERIES SCALE CHART NAME AND/OR NUMBER PRICE PER SHEET RO. DATE
World Aeronautical Chart-ICAO (WAC)
1:1 000 000
WORLD AERONAUTICAL CHART
2548-2563-2669-2670
70 OMR
5 OCT 23

6. INDEX TO THE WORLD AERONAUTICAL CHART (WAC) - ICAO 1:1 000 000

7. TOPOGRAPHICAL CHARTS

Not available.

8. CORRECTIONS OF TO CHARTS NOT CONTAINED IN THE AIP

8.1 Amendments to aeronautical data are included in other sections of this AIP without specific reference to the charts affected. Only obstacles of a height of 100M (328 FT) or more above ground (AGL) are depicted on WAC. The coordinates used are not necessarily derived from a WGS-84 survey made to aeronautical data quality standards.

8.2 Obstacles exceeding heights of 100M (328 FT) AGL reported to AIM Department that are not depicted on the WAC:

Nil
